3D Printing Reaches New Heights

@Diehl Aviation

3D Printing Reaches New Heights in Aerospace Manufacturing

Executive Summary:

Thanks to high-performance aerospace-grade materials that possess the properties required to deliver in an array of application areas, together with inherent capabilities that drive other efficiencies across the manufacturing supply chain, the importance of additive manufacturing (3D printing) continues to be recognized within the aerospace industry. Here, Scott Sevcik, VP Aerospace Business Segment at Stratasys, one of the leading manufacturers of additive manufacturing solutions, looks at some of the current trends and developments that highlight the technology’s ongoing ability to deliver opportunities for aerospace manufacturers and their suppliers.

The relationship between the aerospace and additive manufacturing (AM) industries is continually strengthening and evolving, with both sectors driven by innovation and change. As leaders in these fields invest in and develop technologies, the paths of these two manufacturing industries overlap and inform one another. The unique capabilities of AM to produce complex geometries not possible with conventional production methods using lightweight materials, while enabling high levels of customization, work in symmetry with the needs of aerospace manufacturers, who continually strive to achieve faster speeds and utilize complex part designs to increase efficiency.

While AM is still viewed as a relatively young industry, both aerospace OEMs and aircraft interior OEMs have actually been leveraging the most common additive manufacturing technology, Fused Deposition Modeling (FDM), for the better part of 30 years for prototyping. Fast forward a few decades and today the portfolio of FDM materials is expanding to meet the stringent requirements necessary to make interior aircraft parts flightworthy, while the level of repeatability achievable by high performance systems enables production of parts with consistent performance.

One of the greatest challenges faced by aerospace manufacturers looking to 3D print flight-ready parts is of course certification. While this and material performance have been barriers to wider adoption in the past, huge progress has been made in recent years in material development and specific solutions for aerospace. There are now a number of aerospace-grade materials that comply with the traceability standards outlined by regulatory agencies. For example, Stratasys certification grade filament based on ULTEM™ 9085 resin is FST (flame, smoke and toxicity) compliant, which was key to achieving Airbus material certification. Another example is Antero 800NA material, which is based on the highly chemical resistant PEKK thermoplastic, making it appropriate for those parts of the aircraft exposed to fuel or hydraulic fluid.

Having materials that meet the required properties of in-flight applications is essential, but production technologies also need to be trusted. Part of building this trust is demonstrating a level of repeatability that can provide the basis for industry standards. Repeatable performance simplifies qualification and enables the development of process specifications that can be certified as easily as a more traditionally produced part. Developing these specifications in-house can be time-consuming and expensive. Many large companies will want to invest in their own specification development and qualification process, which will support production within their own supply chain, but many smaller companies won’t have the means to take on this challenge.

To further increase accessibility, we have identified the need for a product specification and qualification data available in the public domain that meets the expected standards of the aerospace industry. For aircraft interiors, we have worked closely with America Makes, the US Air Force, the National Institute of Aviation Research, and the FAA to produce the Aircraft Interior Solution (AIS). This package provides customers with all the information necessary to manufacture parts with ULTEMTM 9085 resin that will perform with highly consistent results.

While certification is crucial, having the capacity to produce high performance thermoplastic parts that can be fully characterized and trusted to have consistent mechanical and geometric properties is also vital. If a lightweight 3D printed thermoplastic part can perform in the most demanding and rigorous applications like a traditionally manufactured counterpart would with its additive benefits of design freedom and supply chain flexibility, it’s easy to see why aircraft manufacturers are increasing their use of FDM technology within the production process. After all, every kilogram saved means a lighter aircraft and more efficient fuel usage for their customers.

These are just some of the developments that underscore the exciting turning point that the industry is at right now – where the technical maturity of FDM machines and materials is enabling aerospace manufacturers to move beyond prototyping and tooling applications and into the production of certifiable production parts at a scale rapidly increasing year on year. Indeed, there are already tens of thousands of interior aircraft parts flying today that have been produced using FDM. Consumers may not even be aware that they are flying on a commercial aircraft with multiple 3D printed parts. Indeed, any time you are on an Airbus A350 XWB, you are likely not far from a number of FDM printed parts.

Delivering improved efficiencies across manufacturing and the supply chain

AM is already having a significant impact in use cases where retrofitting or reducing manufacturing lead times are a priority. When we look at the needs of the industry today, the benefits of AM are not just felt in prototyping or concept vehicles, but in changing the economics of part production.

Traditional inventory and part production can be time and cost intensive, and what we frequently see in the industry is stockpiling of 20 years’ worth of spares when a part goes out of mass production in order to avoid the expenses of retrofitting. AM can lead to a much more efficient approach, with the digitization of spare parts allowing much greater flexibility for operators.

By changing the basic assumptions that lead to a mass production mindset, when it comes to 3D printed parts, we can challenge the way we think about production processes altogether. Rather than designers making decisions based around complicated manufacturing processes or the limitations of tooling that can have supply chain ramifications 20 years later, AM parts can be designed optimally for their end use and result in a more efficient aftermarket at the same time.

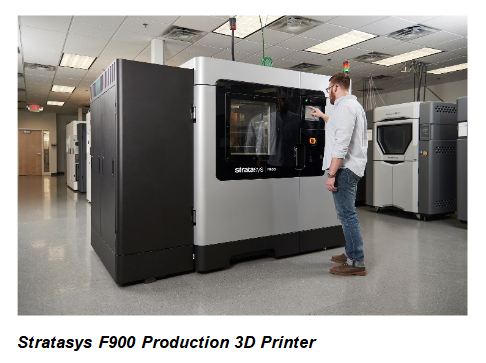

For example, BOOM Supersonic uses a variety of Stratasys FDM equipment, including an F900 3D Printer with the Stratasys Aircraft Interiors Solution, for the design and production of its XB-1 test vehicle. The XB-1 is intended to lead the way to Overture, the world’s first new commercial supersonic aircraft since Concorde. BOOM is utilizing AM to produce dozens of prototypes, tools, simulator components, and parts for the XB-1 which, thanks to the ability to print these items on-site rather than purchasing from a supplier, significantly accelerates the development process.

Transforming the in-flight experience via on-demand customization

The flexibility of AM’s high-performance, low-volume manufacturing, also allows the creation of complex shapes without the geometric restrictions of tooling and molds, opening up in-cabin applications that can really differentiate customer experiences. As lower-volume production becomes more economically viable, manufacturers can create customized parts that are intended for specific classes within aircraft.

For instance, customers can print their branding and logos on aircraft components or integrate unique decorative features, giving each airline or aircraft personality. Where previously we’ve seen this done in some VIP private vehicles, this can now be cost effectively applied to commercial aircraft. This personalization can even benefit pilots: China Eastern Airlines printed a common mount for their electronic flight bags so pilots can mount their tablet the same way regardless of aircraft.

Some of these applications are quite complex. Diehl Aviation recently utilized FDM technology to produce a curtain header – an enclosure that sits above the curtain rail separating classes onboard. Traditionally the enclosure was constructed using several layers of laminated fiberglass and required specialized aluminum tooling, which was time-consuming and costly. Diehl was able to assemble this part from 12 3D-printed thermoplastic components, drastically reducing the tooling costs and saving hours of workforce time. This piece is actually the largest fully 3D-printed passenger aircraft part ever produced and is being line-fit into A350s.

The future for AM and Aerospace

Having worked closely with leading aerospace manufacturers across the industry, there’s no doubt that additive manufacturing can open up many new applications to improve efficiency, increase customizability and transform supply chains with digital inventory and on-demand production. Constant progress is being made in this area to challenge the capabilities of more traditional manufacturing processes and materials, and we continue to drive developments to bring thermoplastics closer to and beyond the capabilities of traditional manufacturing.

Despite these incredible advances and the way in which the technology continues to push boundaries, we still see organizations that are not ready to take advantage of AM. For the industry to continue to progress, parallel advances need to be made in terms of education, design and analysis software, standards, and materials. The result will be continued blue skies for 3D printing opportunities in aerospace.

Source: Stratasys

***
